OB6572/OB6573 is 8-pin Power Factor Correction (PFC) controller IC designed to operate in Continuous Conduction Mode (CCM) with average current control. It provides near-unity power factor for universal input line voltage (85VAC-265VAC) with no need to sense the input voltage. The switching frequency can be internally fixed (OB6573) or externally programmable (OB6572). Frequency shuffling is integrated for better EMI. OB6572/OB6573 includes all necessary protections to ensure safe system operation.


Features:

◆ 8-Pin solution without sensing line voltage
◆ Average current control mode
◆ Internally fixed switching frequency (OB6573) Externally programmable switching frequency (OB6572)
◆ Frequency shuffling for better EMI
◆ Very low shutdown currents (typcial 250uA)
◆ Maximum duty cycle of 97%
◆ Input brown-out protection (OB6573)
◆ Cycle by cycle peak current limit
◆ Soft over current protection
◆ Output over voltage protection
◆ Open loop protection
◆ Enhanced dynamic response
◆ Soft start
◆ On chip thermal shutdown
◆ Fast 1.5A gate drive
◆ Available in DIP8 and SOP8 packages,RoHS compliant



Applications:

◆ LCD/Flat TV
◆ Server and Desktop Power Supplies
◆ AC adapters and other off-line SMPS

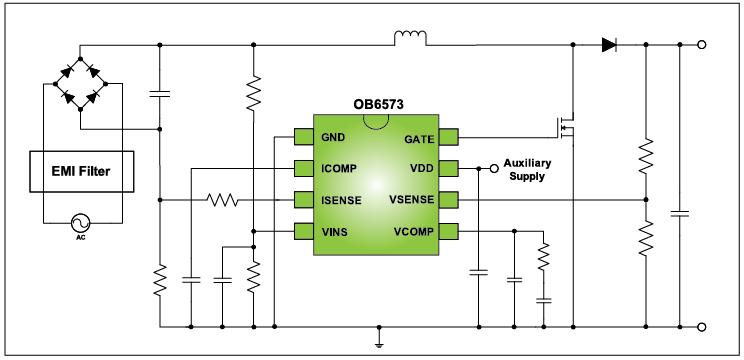

Typical Application:
