OB3360 is a high integrated and high performance Light Emitting Diode (LED) driver optimized for LCD monitor backlight application. It integrates 8 channels of current source to drive LED arrays, and thus provides a cost effective and high reliability LCD backlight solution. OB3360 operates in current mode boost topology, and supports various dimming functions and comprehensive protections.
Features:
◆ Minimal required external components
◆ Current mode boost topology
◆ ±3% matching accuracy between 8 LED strings control current
◆ High precision reference and Selective-Frequency (160KHz/320KHz/640KHz/1.2MHz) control
◆ External programmability of the key parameters
◆ Flexible Dimming mode Control:
◇ Internal burst, external burst (LPWM) dimming control
◇ 0-2V DC voltage or external PWM direct dimming control without external circuits
◇ Dimming range programmable (100%~0%)
◆ Comprehensive protection coverage:
◇ Output over voltage protection (OVP)
◇ Under voltage lockout
◇ Open LED protection and programmable short LED protection
◇ Over temperature protection (OTP)
◆ Available in QFN24/TSSOP24 packages, RoHS compliant
Applications:
◆ Notebook PC
◆ LCD monitor
◆ LCD TV
Device | Output | Package | OB3360 | 8CH*50mA | TSSOP24/QFN24 | OB3360F | 4CH*100mA | TSSOP20 |

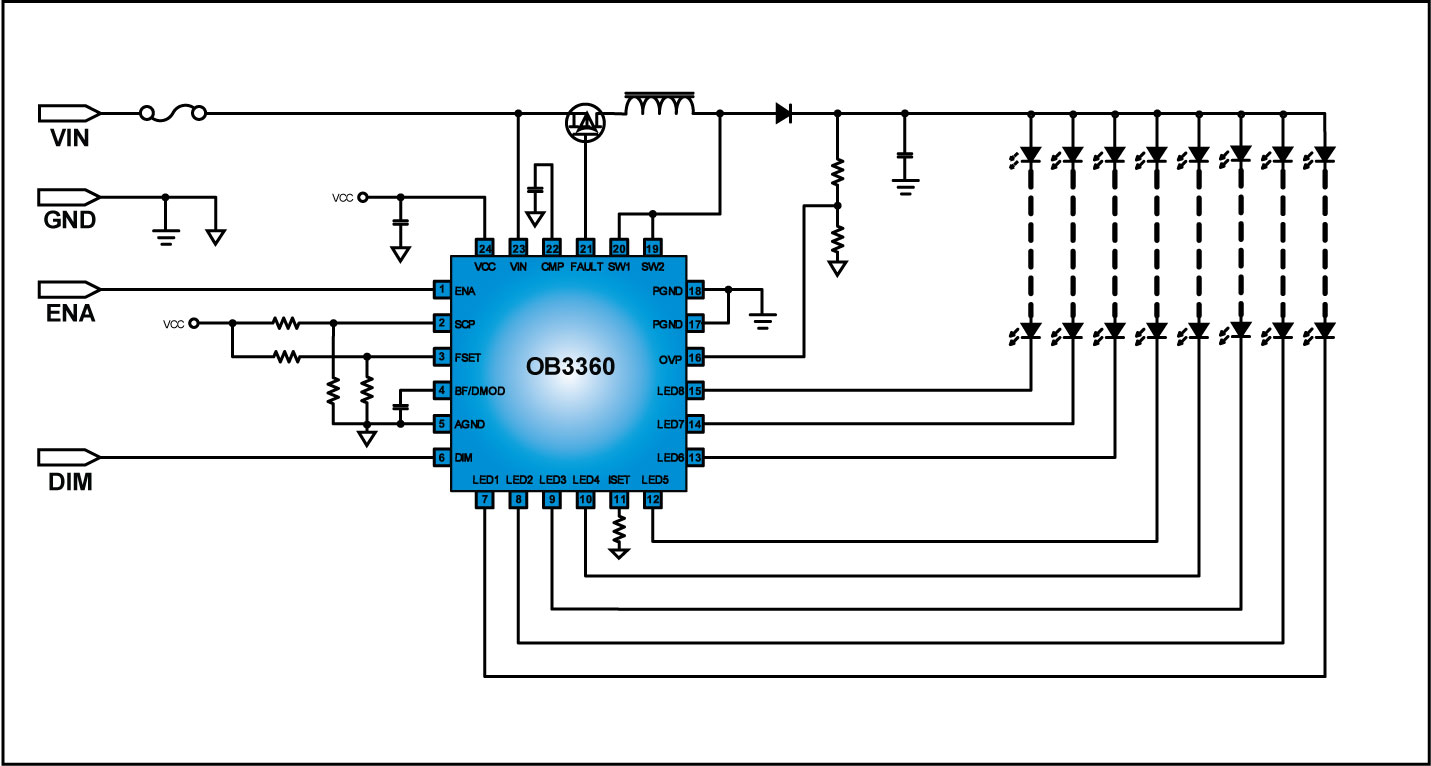

Typical Application:
|
